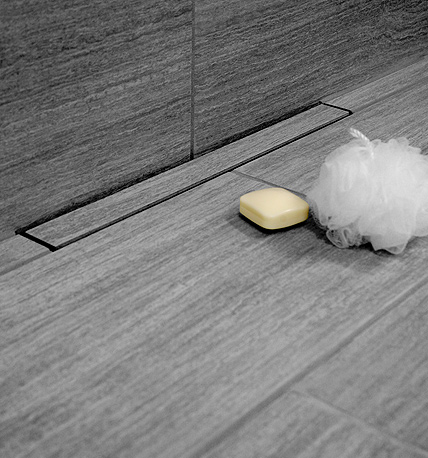

linear shower drains

Linear Shower
Drain System

Design Creativity

  • Contemporary styling with a selection of seven drain lengths and brushed stainless steel or tile top strainer grates
  • Allows the use of larger tiles for greater design flexibility
  • Low profile – ideal for barrier free applications

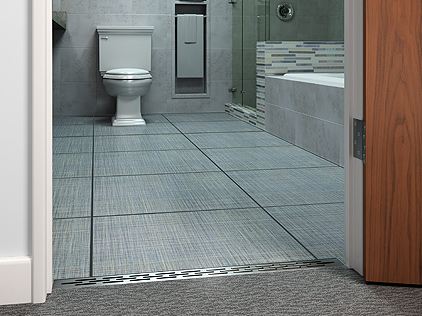

drain in door frame Shower Accessories


  • Residential - New Construction & Remodeling
    • Off-set inlet location designed for use with standard floor joists
    • Easy installation with no substrate modification needed
  • Healthcare Facilities
    • Ideal for use in barrier-free/ADA showers
    • One-piece base construction with low profile and no seams
  • Hospitality
    • Customizable drains* for large projects
    • Install at thresholds or exits for overflow control
  • Multiple Shower Areas
    • High capacity
    • up to 36 USGPM (136 l/min)
    • Removable internal strainer for ease of maintenance
  • Exterior Decks
    • Connect multiple drains to span longer areas, such as pool decks
    • Drain materials are suitable for use outdoors

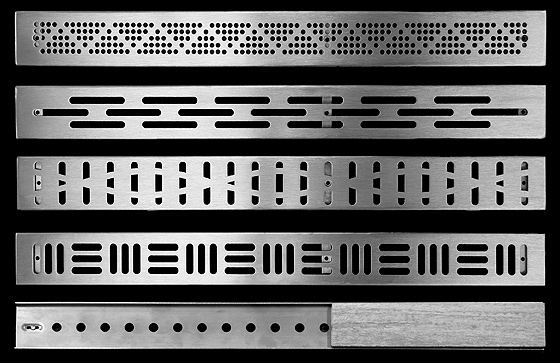

Strainer Grate Designs (top to bottom): Pyramid^, Slotted, Wave, Cross-Hatch & Tile Top.
(^Pyramid strainer complies with ADA guidelines for handicapped accessible showers.)
Floor Drains

Installation Versatility

  • Rough-in (Base) and Trim (Grate) sold separately
  • Easy to install: Just fasten the Freestyle Linear Drain
  • Flat bottom and internal slope
  • Complete installation systems
    • Use with NoblesSeal TS for the most
    • dependable waterproofing
    • Use with Chloraloy and Full Mortar Bed Kit for a traditional full bed method installation, or Single Slope Pro-Slope (coming soon).

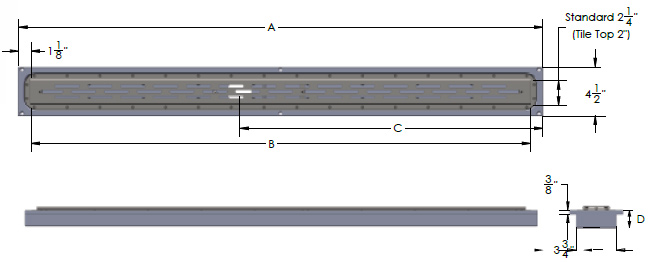

Standard Sizes:

    24” Drain 32” Drain 36” Drain 40” Drain 48” Drain 54” Drain 60” Drain
Drain Base Length A 24” 32” 36” 40” 48” 54” 60”
Strainer Length* B 21-3/4” 29-3/4” 33-3/4” 37-3/4” 45-3/4” 51-3/4” 57-3/4”
Hole Center C 15-3/4” 19-1/2” 21-3/4” 23-3/4” 27-3/4” 30-3/4” 33-3/4”
Thickness D 1-1/4” 1-3/8” 1-3/8” 1-7/16” 1-1/2” 1-9/16” 1-5/8”

*Deduct 3/8” for Tile Top Strainers

Floor Drains Standard Sizes

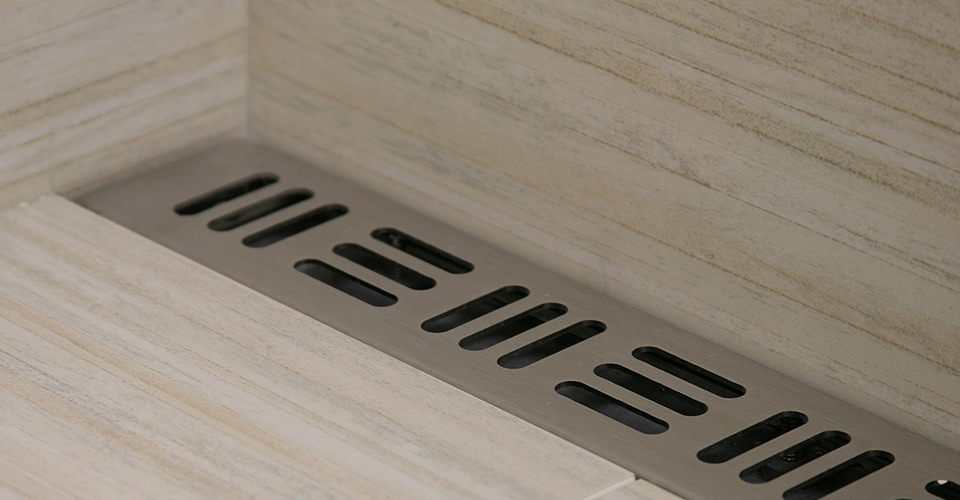

Floor Drains

Floor Drains

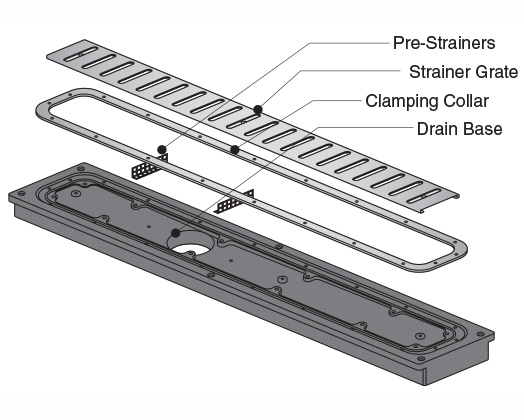

floor drain parts

Functional Reliability

  • Clamping collar ensures a watertight connection
  • Durable, one-piece construction with no seams
  • 1-step connection to waste system

Listings & Approvals:

  • ICC-ES PMG 1065
  • UPC – IAPMO File No. 7249

Shower Elements
from bronte™

Preformed Niches, Benches and Curbs. Waterproof, ready to tile and can be installed in minutes.

  • Install in minutes
  • Waterproof and ready-to-tile
  • Sized for better tile fit
  • Durable and lightweight
  • Custom sizes and shapes available for larger quantity orders
shower niches

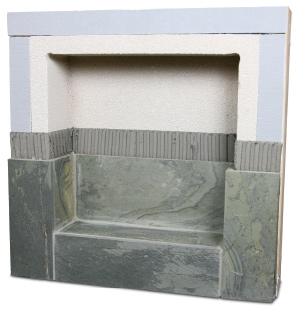

Typical Niche installation cutaway

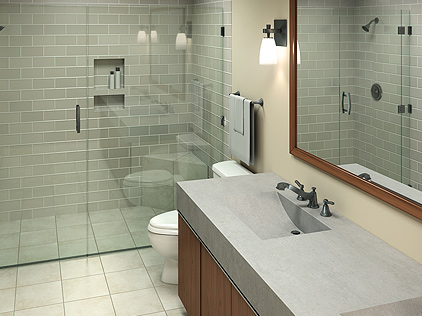

Hotel Shower Elements, niches, benches

Give your bathroom a customized look…


Lightweight. Durable. Ready to tile.


Niches mount flush in 2” x 4” stud wall construction with 1/2” backer board.

Sized for better tile fit, Niche corners are exaggerated to simplify installation of square tiles.



Benches can be combined to create custom sizes and shapes.

Applications include Showers, Steam Rooms, Saunas and Spas.

Shelf Bench features a sturdy aluminum frame for a 400lb load capacity.

shower benches


Curbs and Curb Overlays are available in standard sizes of 3’, 4’ and 5’, but can also easily be cut to size for a custom fit.

Solid Curbs mount directly to the substrate.

Curb Overlay fits standard 2” x 4” construction.

Curb Overlays Curb Overlay Solid Curb


We’ve got your Sheet Membranes and Waterproofing needs covered.

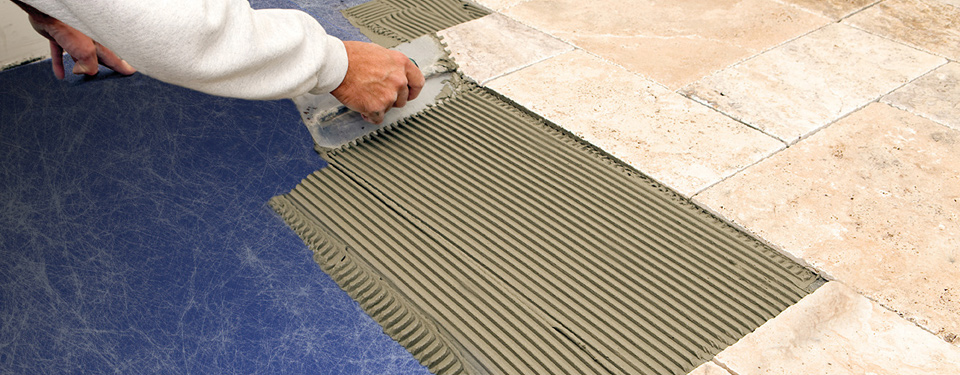

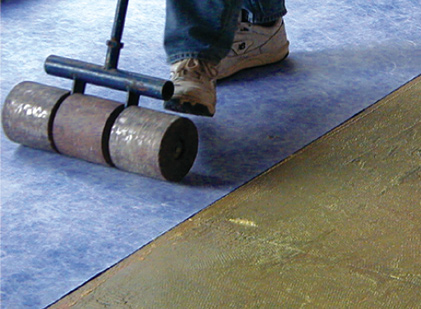

clean tile installation
sheet membranes, waterproofing

Membranes and Accessories

  • Sheet Membranes and Waterproofing
  • ProBase® Ready-to-tile Shower Base Kits
  • PRO-SLOPE™ Pre-slope products
  • Adhesives and Sealants
  • Accessories

The Complete Shower Install.


Sheet Membranes/Waterproofing

Dependable Waterproofing, Sound Reduction, and Crack Isolation membranes for tile installations.

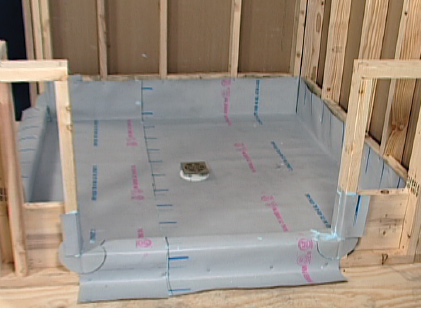

shower pan liner

Shower Pan Liner

Features Superior performance. Guaranteed for the life of the installation. Made of premium CPE.

PRO-SLOPE™, pre-slopes

PRO-SLOPE™ Pre-Slopes

Creates code required slope under a full mortar bed shower pan. Saves time and reduces the risk of fungus, mold and odor.

ProBase®, shower bases

ProBase® Shower Bases

A composite shower base that is sloped to the drain, creating a code rquired slope. Waterproof and ready-to-tile.
